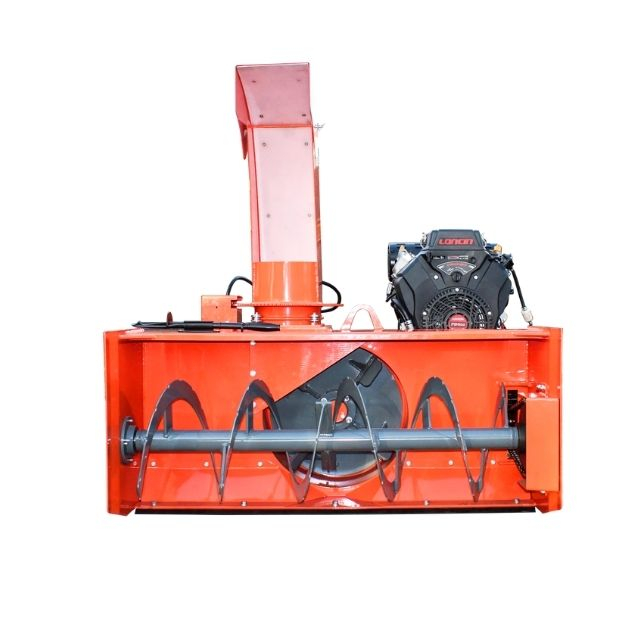

BF120P
Mateng
| Quantity: | |
|---|---|
The machine adopts a front loading connection, and its overall structure is composed of bucket body assembly, gearbox assembly, transmission assembly, gasoline engine assembly, discharge port assembly, auger assembly, fan assembly, torque limiting transmission assembly, etc. After the gasoline engine is started, the power is transmitted to the gearbox assembly and the torque limiting transmission assembly in turn through the transmission assembly to make the auger and the fan run, so as to achieve the effect of snow removal and blowing.
1. Transmission components: Two-stage transmission through the belt, from high-speed transmission 2200r/min to 540r/min.
2. Gearbox assembly: It is distributed through the output of the gearbox. The auger speed is 160-180r/min and the fan speed is 540r/min. The two speeds match, which is conducive to snow removal and blowing.
3. Outlet assembly: It can be adjusted 180 degrees back and forth according to the direction of the snow outlet.
Engine power | 18HP |
Diameter of auger | 400mm |
Thickness of auger | 8mm |
Suspension mode | Front loading |
Working width | 1200mm |
Auger speed | 180r/min |
Fan speed | 540r/min |
Gearbox model | XH38.100J.03W |
Power input speed | 2200r/min |
Normally we use iron frame for the packing. This makes it easy to stack up and easy for transportation.
A: Our products are covered almost all farm machines, such as ATV mowers, flair mowers, finishing mowers, rotary cutters, wood chippers, backhoes, rotary tillers, stone buriers, post hole diggers, snow blowers, flair collectors, rotary rakes, excavator attachments and mini loader attachments.
A: In general, we can ship the goods within 30-45days after receiving your payment.
A: Yes, all of our products have 12 month quality assurance to make sure that we supply you best quality.
A: Of course, you just need to send us the picture of your brand.
Usually 30% T/T deposit for the order after confirming the contract, and then 70% balance before shipping or against copy of B/L.
A: Yes, you can mix different products or models in a container and we will try our best to use the container place.
A: T/T, L/C.
