EHBR130/160
MATENG
129cm-159cm
| Quantity: | |
|---|---|

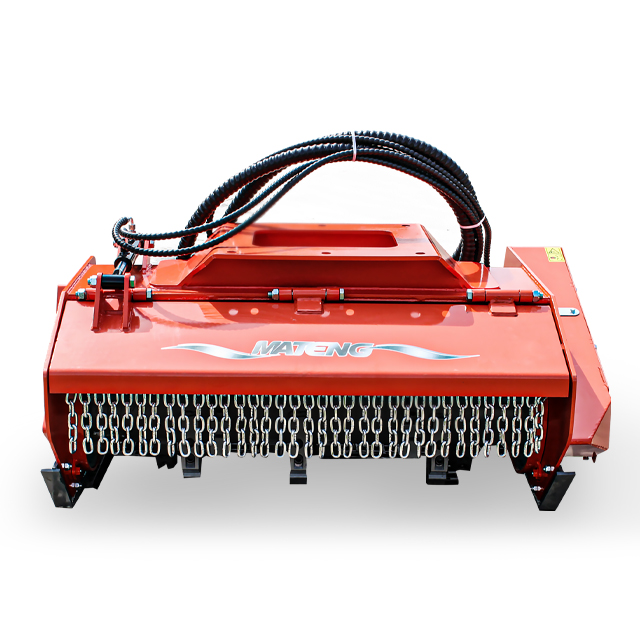

Introducing the new and exclusive Mateng range of Hydraulic Flail Head Mowers, available in the Light, Midi and Powerful series; and specially designed for use on Excavators.
Mateng hydraulic drive mower is a construction machinery excavator attachment with independent intellectual property rights developed by Changzhou Mateng Machinery Co., Ltd. It can be used for cutting irrigation and weeding in the weed environment of gardens and shrubs. It is equipped with excavators of different tonnage and sizes. The machine can work in different ranges.
Mateng hydraulic drive mower has novel and unique structure, flexible and convenient operation, stable and reliable performance, energy-saving and high-efficiency operation, and has strong adaptability to garden and shrub operations. It is the most ideal mowing machine.
1. Frame with internal and external reinforcements.
2. Frame entirely made of steel with a high yield point.
3. Internal counterframe made of wear-proof steel (DOMEX 700).
4. Hydraulic piston motor (50cc).
5. Pressure relief and anti-cavitation valve.
6. 3 ways flow control valve-pressure compensated.
7. Hydraulic pipes and connections protected by spiral （2.2m）
8. Hydraulic cylinder kit for the housing opening.
9. High strength carbide tip and forged holder
10. Skids.
11. Belt-transmission (with 5 belts).
12. Connector model HS-200-FM-S7060
| No | Item | Unit | design value | |
| EHBR130 | EHBR160 | |||
| 1 | Length x Width x Height | mm | 1531×1078×712 | 1831×1078×712 |
| 2 | Cutting width | mm | 1290 | 1590 |
| 3 | Tool shaft diameter | mm | 505 | 505 |
| 4 | Number of blades | PC | 26 | 30 |
| 5 | Total Weight | Kg | 873 | 993 |
| 6 | Speed control valve flow | L/min | 120-130 | 120-130 |
| 7 | Preset pressure | Bar | 270 | 270 |
| 8 | Maximum mowing diameter | cm | 30 | 30 |
| 9 | Adapt to the tonnage of the excavator | T | 12-21 | 12-21 |
Features:
(1) French imported brand, the plunger motor has high working pressure and high speed;
(2) 45° inclined axis piston motor, compact structure, small volume, harmonious and beautiful space layout.
Features:
(1) A pressure-compensated flow control valve composed of a logic valve and a throttle valve, the output flow of the R port is stable, and the flow rate is set before leaving the factory for motors with different speeds;
(2) The valve block integrates an oil replenishment relief valve, which sets the maximum working pressure of the motor and supplies oil to the motor during shutdown.
Features:
(1) The belt adopts imported brand (GATES) with good quality;
(2) A set of 5 belts ensures the high-power and high-intensity output of the cutter shaft.
Features:
(1) It is composed of high-hardness HARDOX400 wear-resistant steel plate welding, which is suitable for various harsh working conditions;
(2) The sliding shoe mechanism can make the machine run smoothly and protect the cutter shaft.
Features:
(1) High-strength forged blade
The rotary support bearing of the mower shaft adopts imported brand (SKF), which has higher rated load and lower noise, which greatly increases the service life of the machine.
Normally we use iron frame for the packing. This makes it easy to stack up and easy for transportation.
A: Our products are covered almost all farm machines, such as ATV mowers, flair mowers, finishing mowers, rotary cutters, wood chippers, backhoes, rotary tillers, stone buriers, post hole diggers, snow blowers, flair collectors, rotary rakes, excavator attachments and mini loader attachments.
A: In general, we can ship the goods within 30-45days after receiving your payment.
A: Yes, all of our products have 12 month quality assurance to make sure that we supply you best quality.
A: Of course, you just need to send us the picture of your brand.
Usually 30% T/T deposit for the order after confirming the contract, and then 70% balance before shipping or against copy of B/L.
A: Yes, you can mix different products or models in a container and we will try our best to use the container place.
A: T/T, L/C.
