ATV120 Flail Mower

Designed for the full range of topping and mowing tasks, from thick dense rushes to fine topping of parkland, our range of ATV Flail Mowers can tackle anything thrown at them.
  • ATV120Q, ATV120QF

  • Mateng

  • Gasoline

  • 13HP, 15HP

  • Recoil, Electric start

facebook sharing button
linkedin sharing button
sharethis sharing button


Building on 12 years of innovation, we have re-engineered, refined, and enhanced the ATV Flail mower to set us apart from the crowd. Mateng designed to tackle dense vegetation, rushes and bracken etc, where reliability, flexibility and durability are paramount. All models have the following features and benefits.

Application of ATV Flail Lawn Mower

1. ATV-120 Flail mower  is a self-powered lawn mower, suitable for towing behind anyting-4WD / Quad Bike / ATV / UTV etc.

2. It is a perfect towable powered flail mower for paddock and field maintenance.

Features of ATV Flail Mower

1. Flail mower with gasoline engine of 13/15HP, it can be connected to any vehicles behind;

2. Electrical power start can be available as choice;

3. Precise dynamic balance to be done on the blade shaft;

4.The blades wear-resisting performance is good and not easy aging;

5. Mowing height can be adjusted,at the back of the bar is used to adjust the height of the wheel  to adjust the height of the knife to achieve mowing height;

6. CE or EPA emission approved;

7. Easy operation, high efficiency;

8. With or without overturned tire for your choice (Wheels can be fixed both sides or rear side)

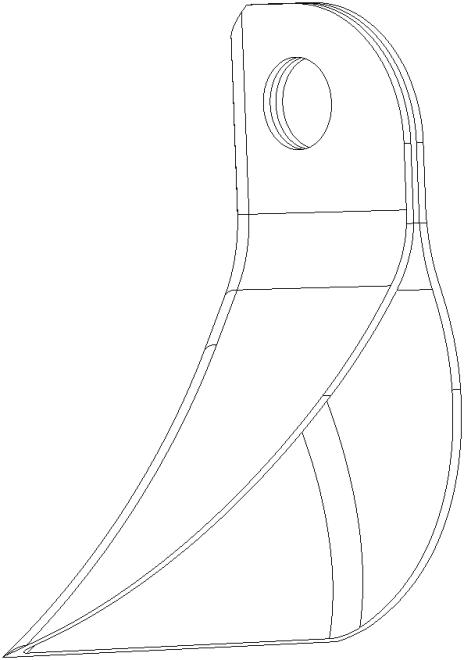

9. Heavy duty H baldes or Y blades

More details of ATV120 Flail Mower:

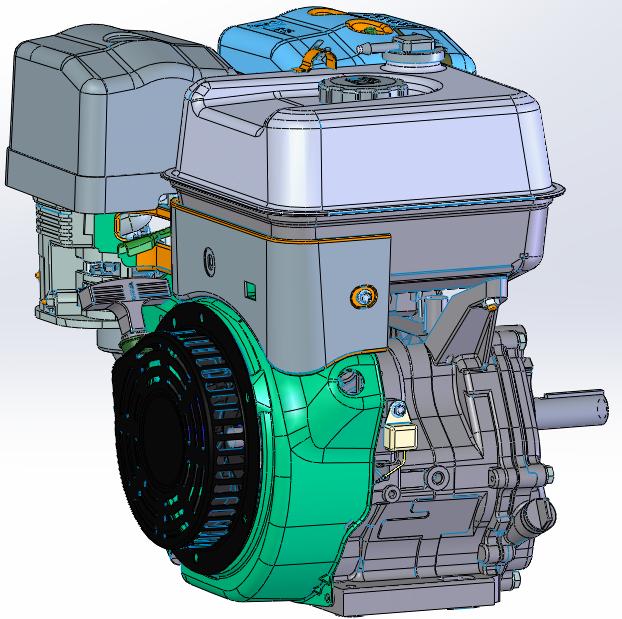

We use industry-leading Powerful 13/15hp gasoline engine, which offer unparalleled power and performance.

The compact design of the self-powered flail topper keeps the mass low to the ground for stability and allows cutting easily beneath trees and overhanging branches.


Used behind an ATV, They have the ability to cut grass or other vegetation with low ground pressure, preventing wheel ruts in soft ground and minimizing damage through gateways etc.


The feature heavy duty steel blades for a clean and effective cut whatever your requests.

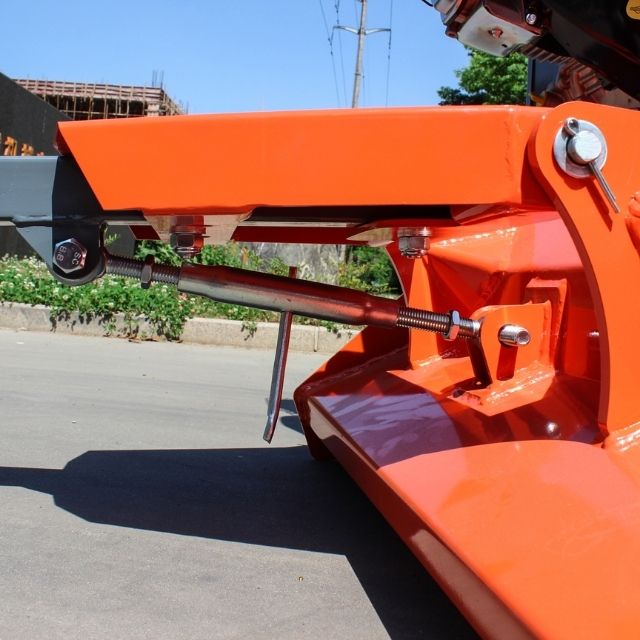

Simple height adjustment for ease of use.

Product Specifications

Dimensions of ATV120 Flail Mower:

Technical Parameters of ATV120 Flail Mower:

Model A B C 割幅 刀轴 刀轴尺寸 饺子刀片 Y刀片
cm cm cm cm RPM A mm B mm V m/s N N
ATV120Q 180 178 96 120 2600 108 316 52 28 56
ATV120QF 166 198 86
Model 锄头刀片 皮带 重量 HP
N N Kg Hp
ATV120Q 28 2 230 13 15
ATV120QF 250


ATV Flail Mower-4
ATV Flail Mower-6

ATV Flail Mower-5

Packaging & Shipping

Normally we use iron frame for the packing. This makes it easy to stack up and easy for transportation.

1. Iron Frame with Plastic Film

Iron Frame with Plastic Film

Standard Package for Free

2. Iron Frame with Shrink Film

Iron Frame with Shrink Film

Optional Package with Extra Charge
3. Plywood Package

Plywood Package

Optional Package with Extra Charge
