BH6600/BH7600/BH8600
MATENG
18-60HP
7'/8'/9'
mechanical grab thumb
| Quantity: | |
|---|---|
Backhoe is called rear actor or back actor，it is a type of excavating equipment, or digger, consisting of a digging bucket on the end of a two-part articulated arm. It is normally mounted on the back of a tractor or front loader.
Mateng BH backhoe designed in compact structure, they are manufactured using heavy formed Q235 structural steel plate, the strongest plate steel available. The pieces are CNC laser cut so that they fit together perfectly, and then precisely welded, all of these result to a perfect combination of weight and rigidity.
Mateng BH backhoes offer a superior powder coat finish that is baked onto the steel. This finish is thicker from mature paint line and much more durable than paint to keep your backhoe free from rust and looking good for years.
It's very easy for the user to install Mateng backhoe on his tractor, you only need to remove the packge, link the pump to tractor PTO output spline, fix the 3 -point frame to tractor hitch, install the seat and finally remove the fixing pin that locate the backhoe, then you can carry on the operation easily.

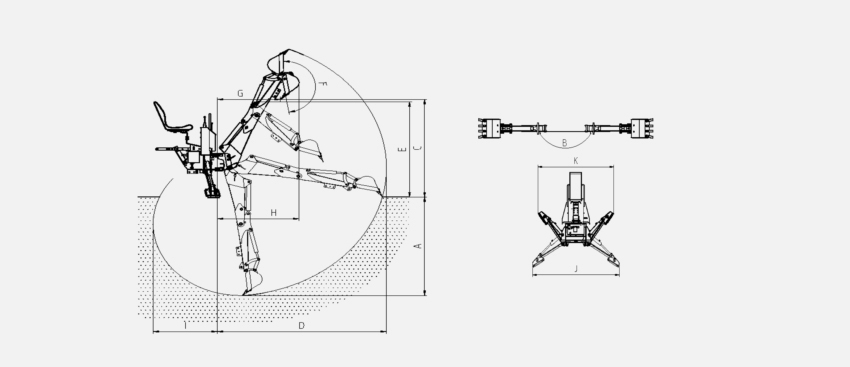

Model | BH6600 | BH7600 | BH8600 |
Maximum Digging Depth | 7' | 8' | 9' |
A. Digging Depth (two foot flat bottom) | 6'6" | 7'6" | 8'6" |
B. Swing Arc | 180 ° | 180 ° | 180 ° |
C. Loading Height (bucket at 60 °) | 5'0" | 5'10" | 5'25" |
D. Reach from Canter Line of Swing Pivot | 8'6" | 9'6" | 10'6" |
E. Transport Height (maximum) | 4'11" | 5'9" | 6'5" |
F. Bucket Rotation | 180 ° | 180 ° | 180 ° |
G. Loading Reach (bucket at 60 °) | 3'2" | 3'7" | 4'0" |
H. Transport Overhang | 3'5" | 3'6" | 4'0" |
I. Undercut | 2'4" | 2'6" | 2'8" |
J. Stabilizer Spread, down position | 6'6" | 7'5" | 7'5" |
K. Stabilizer Spread, up position | 3'11" | 5'1" | 5'11" |
Bucket Cylinder Digging Force | 2450 lbs | 2840 lbs | 3000 lbs |
Dipper stick Cylinder Digging Force | 1250 lbs | 2005 lbs | 2500 lbs |
Shipping Weight (less bucket) | 654 lbs | 875 lbs | 905 lbs |
Hydraulic Volume Requirements | 4 to 5 GPM | 5 to 6 GPM | 5 to 6 GPM |
Hydraulic Pressure Requirements | 2250 psi | 2250 psi | 2250 psi |
Recommended Tractor HP Requirements | 18-35 HP | 25-45 HP | 35-60HP |
Mechanical Grab Thumb Set

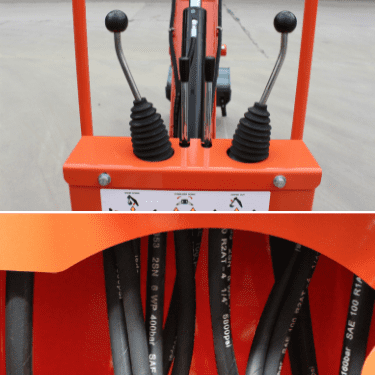

Hydraulic Control

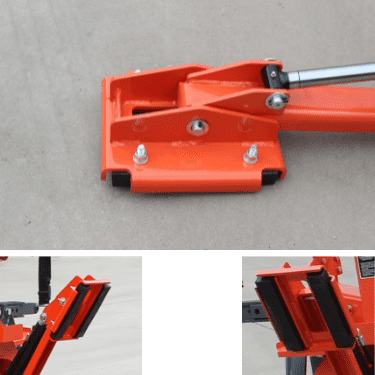

Rubber Pads

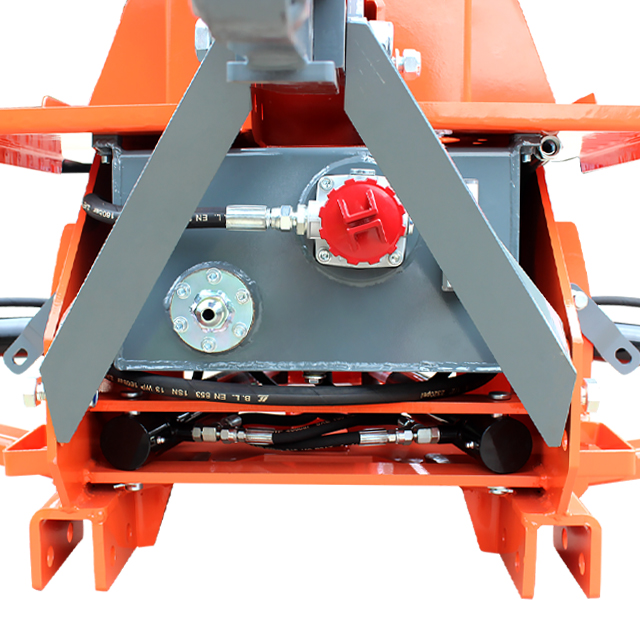

Fuel Tank With Gear Pump
Bucket Option
Normally we use iron frame for the packing. This makes it easy to stack up and easy for transportation.
A: Our products are covered almost all farm machines, such as ATV mowers, flair mowers, finishing mowers, rotary cutters, wood chippers, backhoes, rotary tillers, stone buriers, post hole diggers, snow blowers, flair collectors, rotary rakes, excavator attachments and mini loader attachments.
A: In general, we can ship the goods within 30-45days after receiving your payment.
A: Yes, all of our products have 12 month quality assurance to make sure that we supply you best quality.
A: Of course, you just need to send us the picture of your brand.
Usually 30% T/T deposit for the order after confirming the contract, and then 70% balance before shipping or against copy of B/L.
A: Yes, you can mix different products or models in a container and we will try our best to use the container place.
A: T/T, L/C.
