BH4300
MATENG
10-35
CAT I
| Quantity: | |
|---|---|

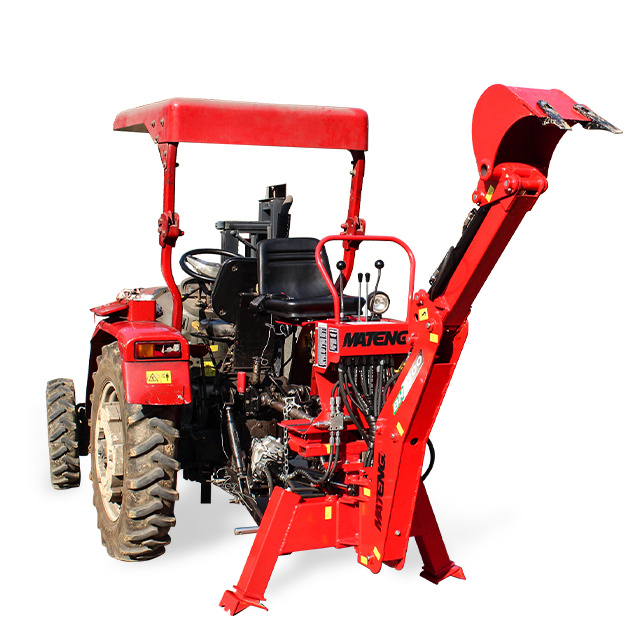

*BH4300 backhoe is applied to the machinery of agricultural tractors, suit for 10-35hp tractor
*BH4300 backhoe weight is light and easy to use. It is suitable for small and medium-sized factories and amateur workers when excavating or handling less heavy materials.

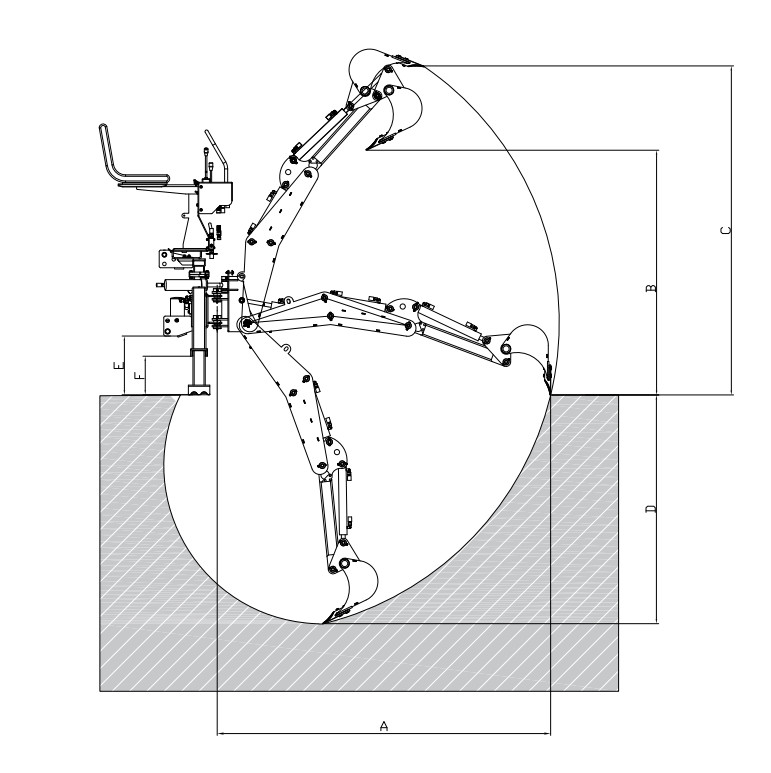

| Model | BH 4300 | |
| Maximum Arm lenght"A" | m | 2.2 |
| Loading Height" B" | m | 1.6 |
| Digging Height " C " | m | 2.3 |
| Maximum Digging Depth " D " | m | 1.3 |
| Clearance "E" | m | 0.4 |
| StabⅢzer Height "F" | m | 0.3 |
| Bucket Rotation | Deg. | 165 |
| Weight | Kg | 205 |
| Tractor Power | HP | 10-35 |
| Accelerating Gear Box | Ratio | 3:1 |
| Gear Pump Displacement | cc/r | 6 |
| Gear Pump Flow Rate | L/min | 9.5 |
| Hydraulic Multiway Valve | 6-valve | |
| Digging Working Pressure | Bar | 170 |
| Rotary Working Pressure | Bar | 100 |
| Digging Force | Kg | 1200 |
| Tank Capacity | L | 12 |
| Standard Bucket | m³ | 0.01 |

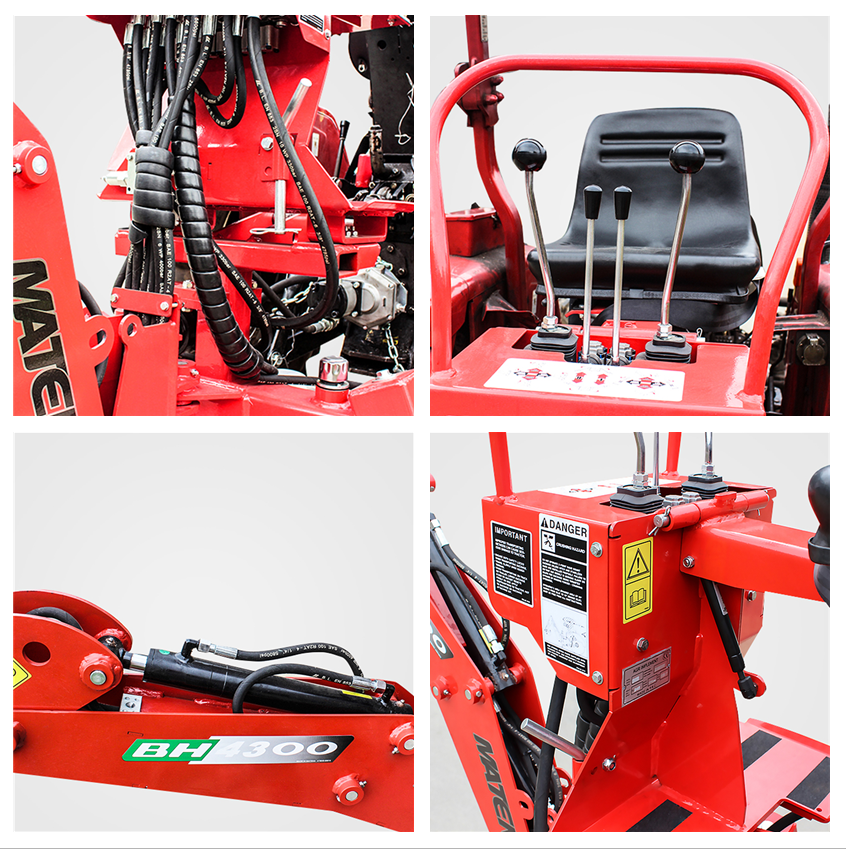

*BH4300 backhoe is composed of a console, a steering knuckle, an articulated arm and a bucket. The articulated arm can rotate about 170 ° and move relative to the frame. All arm and bucket movements are hydraulically driven. All arms are hydraulically locked and equipped with overflow valves, which will play an overload protection role during the use of the machine.

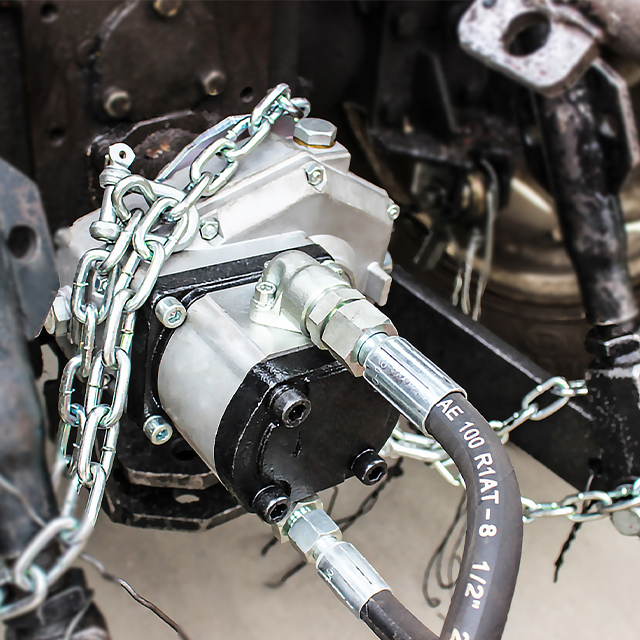

*BH4300 backhoe has an independent hydraulic device driven by a pump, which is connected to the PTO transmission shaft of the tractor to realize the driving function
Normally we use iron frame for the packing. This makes it easy to stack up and easy for transportation.
| BH4300 | Package Size(mm） | 20FT Container | 40HQ Container |
| 1400*1120*1800 | 8 | 16 |
A: Our products are covered almost all farm machines, such as ATV mowers, flair mowers, finishing mowers, rotary cutters, wood chippers, backhoes, rotary tillers, stone buriers, post hole diggers, snow blowers, flair collectors, rotary rakes, excavator attachments and mini loader attachments.
A: In general, we can ship the goods within 30-45days after receiving your payment.
A: Yes, all of our products have 12 month quality assurance to make sure that we supply you best quality.
A: Of course, you just need to send us the picture of your brand.
Usually 30% T/T deposit for the order after confirming the contract, and then 70% balance before shipping or against copy of B/L.
A: Yes, you can mix different products or models in a container and we will try our best to use the container place.
A: T/T, L/C.
