EHMR85/105
MATENG
85cm-105cm
| Quantity: | |
|---|---|

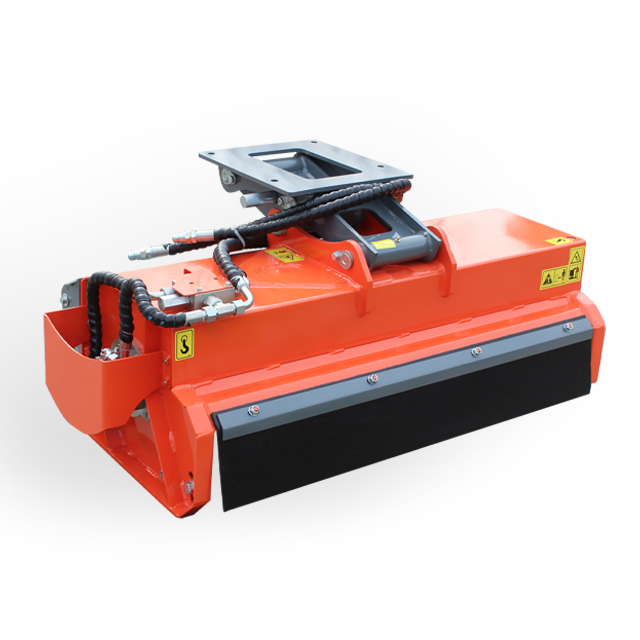

Introducing the new and exclusive Mateng range of Hydraulic Flail Head Mowers, available in the Light, Midi and Powerful series; and specially designed for use on Excavators.
Mateng hydraulic drive mower is a construction machinery excavator attachment with independent intellectual property rights developed by Changzhou Mateng Machinery Co., Ltd. It can be used for cutting irrigation and weeding in the weed environment of gardens and shrubs. It is equipped with excavators of different tonnage and sizes. The machine can work in different ranges.
Mateng hydraulic drive mower has novel and unique structure, flexible and convenient operation, stable and reliable performance, energy-saving and high-efficiency operation, and has strong adaptability to garden and shrub operations. It is the most ideal mowing machine.
Standard：
1.Frame with internal and external reinforcements.
2.Self-leveling parallelogram device，mechanically lockable.
3.Pressure relief and anti-cavitation valve.
4.3 ways flow control valve-pressure compensated.
5.Hydraulic pipes and connections protected by spiral （1.6m）
6.Hydraulic gear motor，up to 30 bar of back pressure on the discharge.
7.Direct drive.
8.Rear adjustable roller.
9.Front adjustable bonnet.
10.Protection with abrasion-proof rubberized front and rear protections.
Spare parts：
1. Spiral knife shaft design, optional hoe knife or group Y-shaped knife, straight blade
2. There are HS-040-S50, HS-040-S5040, HS-060-S50, 3 kinds of connectors can be connected to different types of excavators
| No | Item | Unit | design value | |
| EHMR85 | EHMR105 | |||
| 1 | Length x Width x Height | mm | 1059×816×554 | 1259×816×554 |
| 2 | Cutting width | mm | 850 | 1050 |
| 3 | Tool shaft diameter | mm | 358 | 358 |
| 4 | Hoe Blade quantity | pc | 12 | 16 |
| 5 | Y type blade + straight blade quantity | pc | 24+12 | 32+16 |
| 6 | Total Weight | Kg | 171 | 208 |
| 7 | Speed control valve flow | L/min | 27-38 | 35-48 |
| Tool shaft speed | Rpm | 2500-3500 | ||
| 8 | Fixed work stress | Bar | 200 | |
| Maximum allowable pressure of return oil | Bar | 20 | ||
| 9 | Hoe Blade Maximum Cutting Diameter | cm | 4 | 4 |
| 10 | Straight Y Combination Knife Maximum Cutting Diameter | cm | 3 | 3 |
| 11 | Roller diameter | mm | 102 | 102 |
| 12 | Adapt to the tonnage of the excavator | T | 3.5-5.5 | 3.5-5.5 |
Features:
(1) Imported brand from Italy, gear motor with high working pressure and high speed (3500rpm);
(2) High-performance shaft seal, high temperature resistance, surface linear speed rotation up to 6m/s, can make the motor housing pressure 30bar, effectively reduce the oil leakage failure of the motor shaft seal;
(3) The motor directly drives the cutter shaft for mowing, with compact structure and beautiful layout.
Features：
(1) A pressure-compensated flow control valve composed of a logic valve and a throttle valve, the output flow of the R port is stable, and the flow rate is set before the factory to match the motors with different speeds and marked with a range of ±1;
(2) The valve block is integrated with an oil replenishment relief valve, which sets the maximum working pressure of the motor and supplies oil to the motor during shutdown.
Features:
(1) The floating device is composed of a parallel four-bar linkage mechanism. During the mowing operation, when encountering high-slope and low-pit terrain, it can not only allow the mowing head to float with the terrain without changing the mowing angle, but also protect the mowing. The machine can prevent damage from impact, and can also prevent missed cutting and avoid secondary operations;
(2) Lock the latch, and lock the floating mechanism for straight work when needed, such as pruning fence branches.
The rotary support bearing of the mower shaft adopts imported brand (SKF), which has higher rated load and lower noise, which greatly increases the service life of the machine.
Normally we use iron frame for the packing. This makes it easy to stack up and easy for transportation.
A: Our products are covered almost all farm machines, such as ATV mowers, flair mowers, finishing mowers, rotary cutters, wood chippers, backhoes, rotary tillers, stone buriers, post hole diggers, snow blowers, flair collectors, rotary rakes, excavator attachments and mini loader attachments.
A: In general, we can ship the goods within 30-45days after receiving your payment.
A: Yes, all of our products have 12 month quality assurance to make sure that we supply you best quality.
A: Of course, you just need to send us the picture of your brand.
Usually 30% T/T deposit for the order after confirming the contract, and then 70% balance before shipping or against copy of B/L.
A: Yes, you can mix different products or models in a container and we will try our best to use the container place.
A: T/T, L/C.
