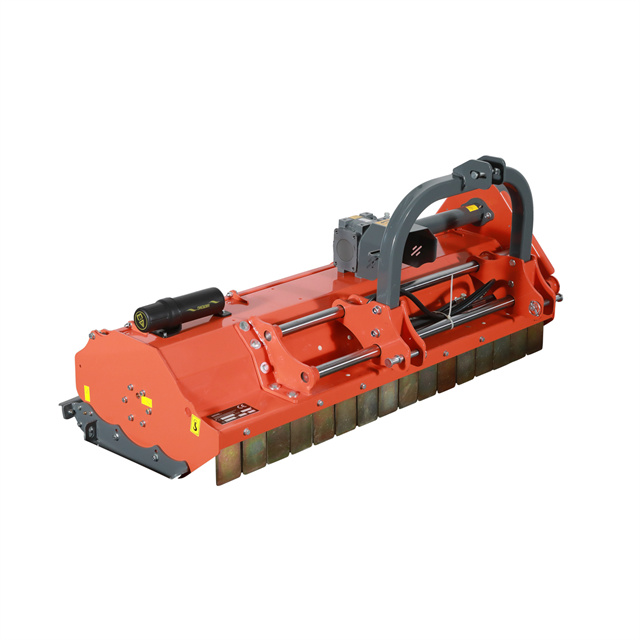

F.US/MA is the best-selling flail mower in Europe and America,The Mateng machinery 3-point side shift F.US/MA flail mower for 45-70hp tractors features a reliable 3-belt drive with adjustable tensioner, hydraulic side shift, forged flail hammers, and an adjustable rear roller. This versatile flail mower is perfect for maintaining grass, bushes, and cutting down saplings. At 145-165-185cm wide this flail mower is ideal for parks, gardens, and sport courts etc.
· Blade rotor shaft driven with 3 drive belts
· Adjustable rear roller
· Hydraulic side shift and quick couplings option
· Side skids
· Adjustable tensioner
· Forged flail hammers
· Shear pin 3-pto shaft included
45-70 PTO horse power
Ø 4-5cm Adjustable to meet various height requirements
DECK PLATE MATERIAL THICKNESS
structural Q235 roll formed steel for durability.
SIDE PLATE THICKNESS
Q235 roll formed steel for durability.
PRECISION BLADE OVERLAP
The blades are staggered precisely with no gap in the mowing area. Blade overlap is important to achieve an even cutting result.

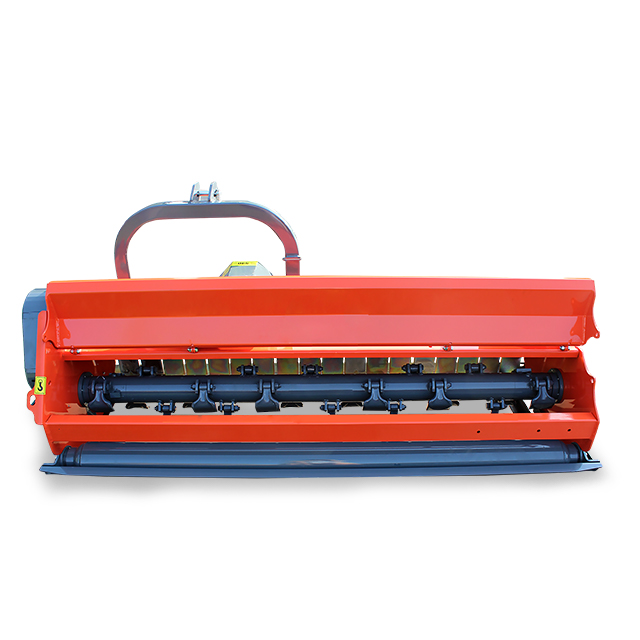

HINGED REAR GATE
This allows for easy inspection, cleaning, blade changing, and maintenance of your machine. The rear gate can also be left open for easier discharge in heavy conditions, or you can close the gate to greater mulching.
ROTOR ROTATION – REVERSE
The rotor spins in the opposite direction as the wheels of the tractor when traveling forward. This allows the blades to shear the material as it is folded forward by the mowers. The material is then thrown up and over the rotor.
BALANCED ROTOR TUBE
The rotor tube is balance to reduce vibration and ensures that the mower runs smooth, and reduces wear on the bearings.
ROTOR SWING DIAMETER-13.5″
Large swing so that the blades build required inertia.
ROTOR SHAFT SPEED
OFFSET FROM PTO CENTER
This feature allows for offset from center to the right of the tractor. This feature is helpful for mowing around fences, buildings; walkways etc. From the center of the PTO the mower extends 46″ to the right and 33″ to the left.
DRIVE BELT TENSIONER
Solid state automatic – this feature automatically adjust the belt tension so you don’t have to worry about slippage or overworking the belts. This feature greatly increases the belt life.
Up to 50 hp. Heavy duty proven oil bath gearbox for long life.
REPLACEABLE SKID SHOES
The skid shoes reduce gouging are bolt on so you can adjust or replace them easily when the time comes.
GREASEABLE SHIELDED BEARINGS
Accessible greasable bearings for easy maintenance.
REAR HEIGHT ADJUSTING ROLLER DIAMETER
With tapered ends – this roller contacts the ground to ensure even cutting height. The ends of this roller are rounded to eliminate gouging when turning corners. A scraper bar ensures that mud and debris buildup is cleaned off as you go.
POWDER COAT FINISH
The rust resistant baked on powder coat finish is more durable than conventional paint to keep your machine looking good for years.
