G.US105(H)-125(H)-145(H)-165(H)
20-40HP
I
105cm-125cm-145cm-165cm
| Quantity: | |
|---|---|

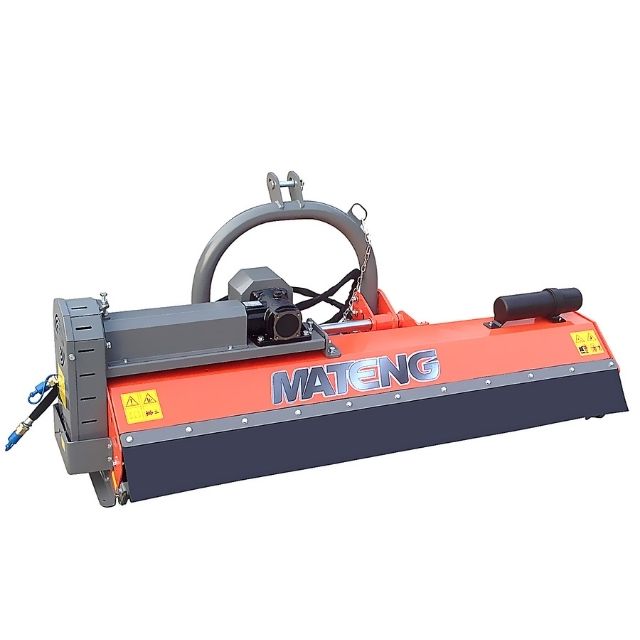

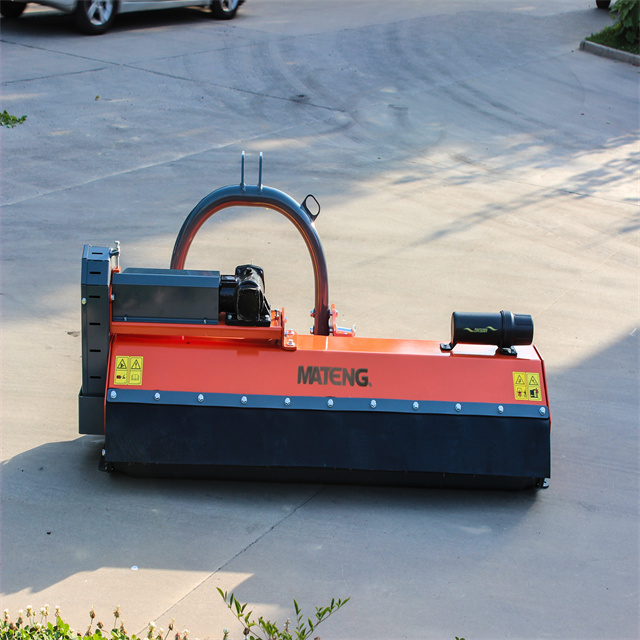

G.US flail shredder is a very classic small shredder, with 20-40HP tractor, there are four types of working width: 105, 125, 145, 165cm，is currently the most popular small shredder in Europe.
G.US Mower provides excellent cut quality and performance on lush turf grasses on expansive and well manicured areas such as parks, green areas, sport courts etc.Suitable for CAT1 tractor, more friendly working experience.
By high-speed rotation of spindle, it is used for mowing in the field, and weeds no more than half a meter.It can turn over its body, the max. angle can reach 90-degree, the side can be revised to left side and right side as request. for weeds on a slope and side trimming on the trees.More pieces Hamers or Y baldes, bigger density and higher mowing efficiency.After dynamic balance test, the blade axle can run stably at high speed, with lower noise.At the same time, the optional hydraulic side shift allows users to have a better experience and choice.
The grass ejecting method above the drum can improve the mowing efficiency, and it is not easy to stick grass. The gap between the blade tip and the inner cavity of the hood can improve the crushing effect. The outer bearing seat of the blade shaft can increase the effective mowing width.
| Model | A | B | C |  |  |  |  |  | |||||||
| cm | cm | cm | cm | RPM | A mm | B cm | V m/s | RAM | HP | ||||||
| G.US105 | 65 | 118 | 76 | 100 | 2092 | 76X8 | 27 | 29.6 | NO | 30 | |||||
| G.US125 | 138 | 120 | NO | ||||||||||||
| G.US125H | 138 | 120 | YES | ||||||||||||
| G.US145 | 158 | 140 | NO | ||||||||||||
| G.US145H | 158 | 140 | YES | ||||||||||||
| G.US165 | 178 | 160 | NO | ||||||||||||
| G.US165H | 178 | 160 | YES | ||||||||||||
| Model |  |  |  |  |  |  |  |
| N | N | PTO | CAT | N | KG | HP | |
| G.US105 | 28 | 14 | 540 | I | 2 | 202 | 20-40 |
| G.US125 | 36 | 18 | 211 | ||||
| G.US125H | 36 | 18 | 225 | ||||
| G.US145 | 40 | 20 | 215 | ||||
| G.US145H | 40 | 20 | 238 | ||||
| G.US165 | 48 | 24 | 230 | ||||
| G.US165H | 48 | 24 | 253 |
Normally we use iron frame for the packing. This makes it easy to stack up and easy for transportation.
A: Our products are covered almost all farm machines, such as ATV mowers, flair mowers, finishing mowers, rotary cutters, wood chippers, backhoes, rotary tillers, stone buriers, post hole diggers, snow blowers, flair collectors, rotary rakes, excavator attachments and mini loader attachments.
A: In general, we can ship the goods within 30-45days after receiving your payment.
A: Yes, all of our products have 12 month quality assurance to make sure that we supply you best quality.
A: Of course, you just need to send us the picture of your brand.
Usually 30% T/T deposit for the order after confirming the contract, and then 70% balance before shipping or against copy of B/L.
A: Yes, you can mix different products or models in a container and we will try our best to use the container place.
A: T/T, L/C.
